Description

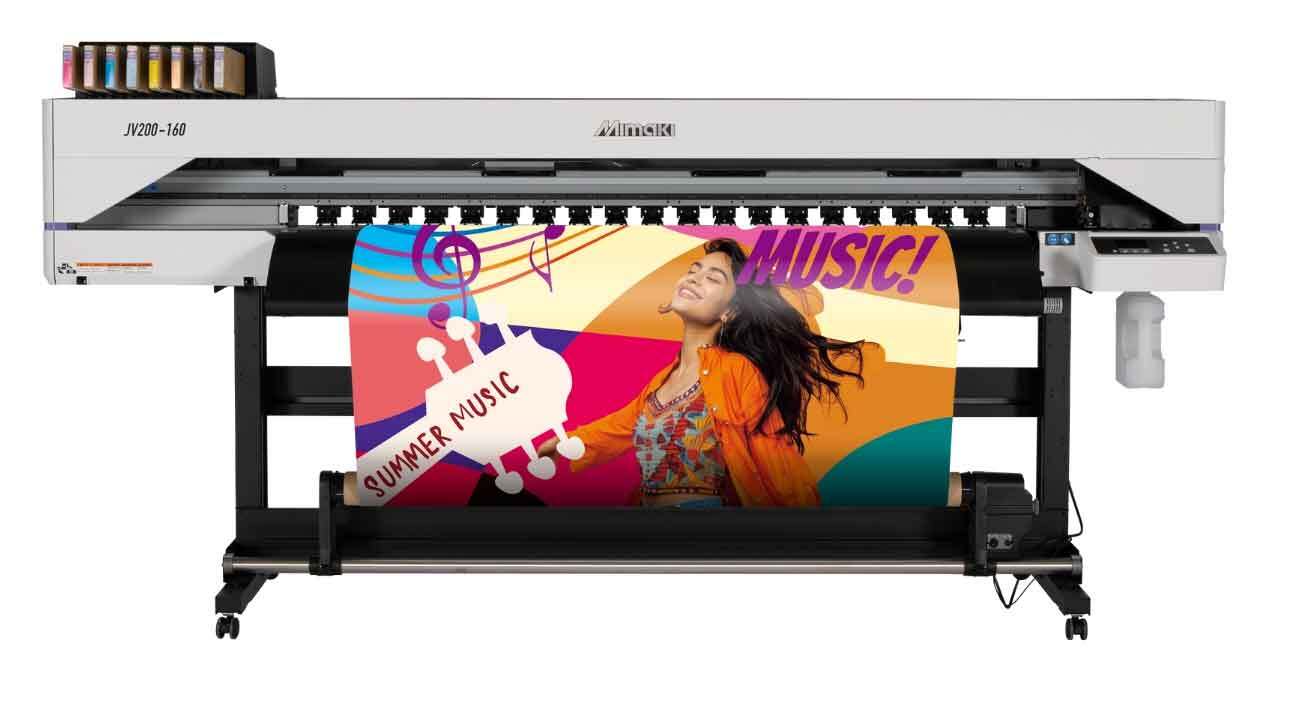

Mimaki JV200-160 | 64" Eco-Solvent Printer
The Mimaki JV200-160 is a next-generation 1.6m wide format solvent printer designed to deliver exceptional output with ease, efficiency and versatility. Engineered for signmakers, vehicle wrappers and print providers seeking an affordable, high-performance print-only solution, the JV200-160 builds on Mimaki’s trusted heritage with a new print engine derived from the flagship 330 Series.
High-quality wide format printing – redefined for today’s sign and display professionals
Combining vibrant, long-lasting output with intuitive operation and enhanced workflow features, the JV200 is ideal for a wide range of indoor and outdoor applications. Whether you’re expanding production or upgrading from an older model, it offers an impressive balance of speed, quality and reliability.
Ideal for producing high-impact signage, display graphics, vehicle liveries and promotional prints, the JV200 supports a variety of media including self-adhesive vinyl, banners, canvas and backlit films. The advanced printhead configuration and precision drop control ensure smooth gradations, vibrant colour, and crisp detail – even at high speed.
With intuitive controls, improved media handling and user-focused features throughout, the JV200 is as easy to operate as it is to integrate into your existing setup. Whether you’re printing short runs or high-volume jobs, this solvent printer provides the productivity and quality to help grow your business and explore new opportunities
Product Outlines
-
- Beautiful printing. Mimaki's flag-ship printer's "330 Engine" a single print head is mounted to achieve high image quality.
- Reliable even during busy periods. Highest practical print speed at entry level: 17.0 m²/h
- Simple design that is easy for anyone to use. Easy to work with, easy to check, and easy to maintain.
- New SS22 ink, which does not contain GBL, a controlled substance, is provided in an environmentally friendly paper cartridge.
 |
|
Suitable for cost effective production of large,
high-quality signage and vehicle wrapping films
・Max. Print / Cut Width：1,610 (63.4") mm
・Max. Media Width：1,620 (63.8") mm
|
Effortless Control and Operations
Designed to make day-to day print production easier
Designed with the user in mind, the Mimaki JV200-160 features a highly intuitive control panel, enhanced media feed system and practical maintenance functions that simplify day-to-day use.
Combine with a Mimaki vinyl cutter and enjoy class-leading, seamless print and cut workflow.
From job setup to finishing, the JV200 helps streamline your production with minimal operator intervention – making it ideal for busy print environments with limited resource.
|
|
|
|
|
Powered by the Mimaki 330 Print Engine
Technology you can trust.
Inherited from Mimaki’s award-winning 330 Series, the advanced print engine at the heart of the JV200 delivers class-leading output quality and performance. Featuring high-precision dot placement, variable drop printing and intelligent waveform control, it ensures accurate, vibrant prints across a wide range of substrates.
The printhead configuration enables fast throughput without compromising detail, helping you meet tight deadlines while exceeding client expectations.
|
High productivity and new revenue opportunities
With fast print speeds, reliable unattended operation, and with a choice of Mimaki’s three popular eco-solvent inks, the JV200 is built for productivity. It’s equally suited to high-volume workflows and bespoke projects, giving sign and graphics providers the flexibility to handle diverse client demands.
Its combination of low running costs, fast ROI, and broad application potential makes the JV200 a smart investment for businesses looking to expand capacity or unlock new commercial opportunities.
|
|
|
|
|
Mimaki BS4 and SS22 inks
Maximum flexibility to suit every business
New Sustainable Solvent Ink
Mimaki SS22 sustainable solvent ink is GBL-free and future proofs businesses with a high performance, high gamut solution. Available as an eight colour inkset: CMYK, light cyan, light magenta, orange and light black.
New Budjet Solvent Ink
New Mimaki BS4 budget solvent is the ideal option for the most cost conscious organisations, offering enhanced running costs whilst still delivering a high quality solution. Available as a four colour inkset: CMYK
Mimaki’s Proven SSS21 Solvent Ink
With a huge colour gamut, achieve brilliant, intense and vivid colours, with the option to further extend the standard inkset with the addition of orange, light black and white.
|
Available Colours
Mimaki's inks deliver highly consistent results, with special colours and effects adding to the creative capabilities of your printer. NB: Not all colours are available in all inksets shown. Please consult with your supplier to confirm.
|
|
|
|
|
Powerful, Integrated RIP & Cutting Package
Integrate your workflow with Mimaki's easy to use software
Mimaki RasterLink 7 RIP software enables the advanced features of Mimaki’s range of printer and printer/cutters, to assure the highest print quality with serious ease of use. Delivering smooth tonal gradation, accurate production of special effects, swift PDF processing and much more.
Mimaki FineCut works alongside RasterLink to seamlessly integrate the design > print > cut process as part of an intuitive workflow. With powerful features such as Mimaki’s unique die cutting process and the newly added ID Cut barcoding function.
|
Watch this Video
Specification
| |
Product |
JV200-160
|
| |
Print Head
|
On-demand piezo heac
|
| |
Print Resolution
|
600dpi, 900dpi, 1200dpi
|
| |
Print Gap
|
By manual 2 levels (1.5/2.0 mm)
|
| |
Ink / Type and Colour
|
Eco-solvent ink
SS22 (C,M,Y,K,Lc,Lm,Lk,Or)
SS21 (C,M,Y,K,Lc,Lm,Lk,Or) *1
BS4 (C,M,Y,K) *Only available in specific countries
|
| |
Ink / Capacity *2
|
SS22：440ml Ink cartridge / 1L Ink pack
SS21: 440ml Ink cartridge / 2L Ink pack
BS4: 600ml Ink pack *3 / 2L Ink pack
|
| |
Media
|
|
| |
Maximum print width
|
1,610mm (63.4")
|
| |
Maximum width
|
1,620mm (63.8")
|
| |
Thickness
|
1.0 mm or lower
|
| |
Roll diameter
|
φ180 mm or less
|
| |
Roll weight
|
25 kg (55.1 lb) or less
|
| |
Roll inside diameter
|
2 inch / 3 inch
|
| |
|
|
| |
Other
|
|
| |
Interface
|
Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed
|
| |
Certifications
|
VCCI class A, FCC class A, ETL IEC 62368-1,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, Energy Star, RCM, KC
|
| |
Power supply
|
Single-phase (AC 100–120V/200–240V)×2 50/60Hz±1Hz
|
| |
Power consumption |
Max. 1,320 W x 2 or less / Min. 4.5 W or less (Sleep mode)
|
| |
Operational environment |
Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Recommended temperature: 20–25 °C (68–77 °F)
Dust level: General office level
|
| |
Dimensions (W×D×H) |
2,770mm × 748mm × 1,370mm (109.0"×29.4"×53.9")
|
| |
Weight
|
140 kg (308.6 lb)
|
| |
*1 Scheduled to be available in March 2025.
*2 The use of 1L/2L ink packs requires OPT-J0364 MBIS3 (Mimaki Bulk Ink System 3) and OPT-J0576 MBIS BKT OPT (attachment), which are options sold separately.
*3 600 ml ink pack requires eco cartridge (OPT-J0361: ECO CASE 4). Eco cartridges can be used repeatedly by replacing ink packs.
- Some of the samples in this website are artificial renderings.
- Specifications, design and dimensions stated in this website may be subject to change without notice (for technical improvements, etc).
- The corporate names and merchandise names written on this website are the trademark or registered trademark of the respective corporations.
- Inkjet printers print using extremely fine dots, so colors may very slightly vary after replacement of the printing heads. Also note that if using multiple printer units, colors could vary slightly from one unit to other unit due to slight individual differences.
|
