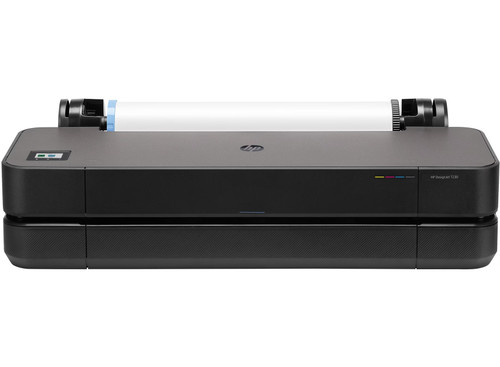

HP Designate T230 - 24 inch 4 colour CAD Printer

HP DesignJet T230 Printer | 24" | 610mm | A1 | 4 Colour

HP

HP T230 Printer incl. free roll of Paper

Code:: 5HB07D

Warranty Option: Required

Stand Options: Required

Sheet Feeder Options: Required

Ink Option: Required

Paper Option: Required

Delivery Option: Required

Current Stock:

£654.00

£545.00

Quantity:

Description

HP DesignJet T230 Printer - 4 Colour 24"/ 610mm A1

Seamless, secure, and sustainable printing with the world’s smallest plotters to plot maps and CAD technical drawings.

The HP DesignJet T200 Series offers high-quality solutions for large-format printing.

The world's smallest plotters with high-quality results.


Streamline your printing experience Helps to simplify and offer solutions for a convenient and efficient way to manage printing tasks with HP Click Print	Reliable Technology HP Wolf essential security helps protect your network against cyber threats and malware with built-in security.	High-quality Results HP Bright Office Inks deliver betterline accuracy ^[III] and up to 34% more gamut.

The world's smallest plotters with high-quality results.

Achieve high-resolution results in a fraction of the space.

		Responsibly designed printer Choose an HP large format printer with a sustainable design, helping to reduce waste – made with 40% recycled plastic ^[V] and and 65% energy saving ^[VI] The first HP large format printer containing recycled metal ^[VII] EPEAT gold climate+ Energy Star Certified
Focus on the project, not your plotter. This printer delivers incredible ease of use with HP Click Print solutions. It's responsibly designed to help you save energy and reduce plastics use. Plus, it’s compact and adaptable—to fit the way you work.

INTUITIVE—Easy, effortless

Simplify printing with the new HP Click Print solutions—save time with real-print preview. With an accessory, print multi-size A4/A to A1/D projects without manually switching the media source. Print your jobs and manage your plotter virtually anywhere, anytime with the HP app.

RESPONSIBLY DESIGNED—Reduce energy and plastic use

Save 65% energy with the printer on/off auto scheduler and enjoy efficient ink maintenance routines[6]. Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1 pages per month. Made with at least 40% recycled plastic and the first HP large format printer containing recycled metal. Certified by UL ECOLOGO®. Registered in EPEAT Gold and achieves EPEAT Climate+.

OPTIMISED—Fits the way you work

Save space with the world's smallest plotters designed to fit your office. Avoid waiting by the printer with printing as fast as 35 seconds per A1/D plot. Protect your printer from cyberthreats with HP Wolf Essential Security. Get high-quality results—HP Bright Office Inks deliver better line accuracy and up to 34% more gamut.

Key Features

A4 /A3 / A2 / A1

Dynamic security enabled printer

35 sec/page on A1, 68 A1 prints per hour

Up to 2400 x 1200 optimised dpi

Sheet feed, roll feed; automatic horizontal cutter

Watch this Video

Specification

Memory

512mb

What's in the Box

HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord.

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Security features

HP Wolf Essential Security: Secure boot with HW root of trust
Firmware Code Signature Validation
Automatic FW Updates
HTTPS Redirect enabled by default
SNMPv1/2 read-only by default
SNMPv3 disabled by default
Write-protected memory
HP Cartridge Security
Unique password
Disable USB ports
TLS 1.2
802.1x
IPv4 & IPv6 Compatibility
CA/JD Compatibility

Weight

21.5kg

Package weight

27kg

Dimensions (W x D x H)

1013 x 440 x 285 mm

Package Dimensions (W x D x H)

1155 x 575 x 405 mm

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Power Consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)

Software included

HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS

Manufacturer Warranty

One-year limited hardware warranty

Print Cartridges/Bottle, Number

4 (C, M, Y, K) cartridges

Ink types

Dye-based (C, M, Y)
pigment-based (K)

Print Cartridge/Bottle, Color(s)

Cyan, magenta, yellow, black

Ink Drop

5.5 pl (C, M, Y)
12 pl (K)

Print Cartridges / Bottles / Colours

80 ml (K)
38 ml (K)
29 ml (C, M, Y) per cartridge

Print Head Nozzles

1376

Print Heads

1 (cyan, magenta, yellow, black)

High capacity of page yield (colour)

1013 x 440 x 285 mm

Package Dimensions (W x D x H)

20 ml of ink yields 101 A1 pages, taking into account maintenance routines

Product safety

https://kaas.hpcloud.hp.com/pdf-public/pdf_11352036_en-US-1.pdf

Functions

Print

Print quality colour (best)

Up to 2400 x 1200 optimised dpi

Internal Storage

None

Print Speed

35 sec/page on A1, 68 A1 prints per hour

Print technology

HP Thermal Inkjet

Print languages

JPEG, URF

Printer drivers included

Raster driver for macOS and Windows, HP Click Driver for Windows 11

Model size

610 mm

Remote print enabled

Yes

Non-printable area (cut-sheet)

5 x 5 x 5 x 17 mm (manual feed)
5 x 5 x 5 x 5 mm (input tray)

Non-printable area (roll media)

5 x 5 x 5 x 5 mm

Printing path

HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing

Line accuracy

±0.1%[3]

Theoretical minimum line width

0.02 mm

Print multi-size files in one click

Yes

Maximum optical density (black)

8 L* min/2.10 D

Media sizes supported

A4, A3, A2, A1

Media sizes, custom

210 x 279 to 610 x 1897 mm

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended

60 to 280 g/m²

Media width, maximum

610mm

Supported Primary Applications

Line drawings
Presentations
Renderings

Recommended media

Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m

Media sizes standard (metric rolls)

279 to 610 mm

Ink types

Dye-based (C, M, Y)
pigment-based (K)

Finished output handling

Sheet feed, roll feed
automatic horizontal cutter

Roll external diameter

100mm

Roll maximum input

1

Roll maximum weight

4.1 kg

Media thickness

Up to 11.8 mil

Media thickness maximum (metric)

Up to 0.3 mm

Product disclaimer

his printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges.

More at:

http://www.hp.com/learn/ds

Technical features

Wi-Fi
Color Touchscreen
Start-up Ink Cartridges
USB port for PC connection
Max resolution 2400 x 2400 dpi
Roll cover accessory
Automatic sheet feeder accessory
Output stand bin accessory
